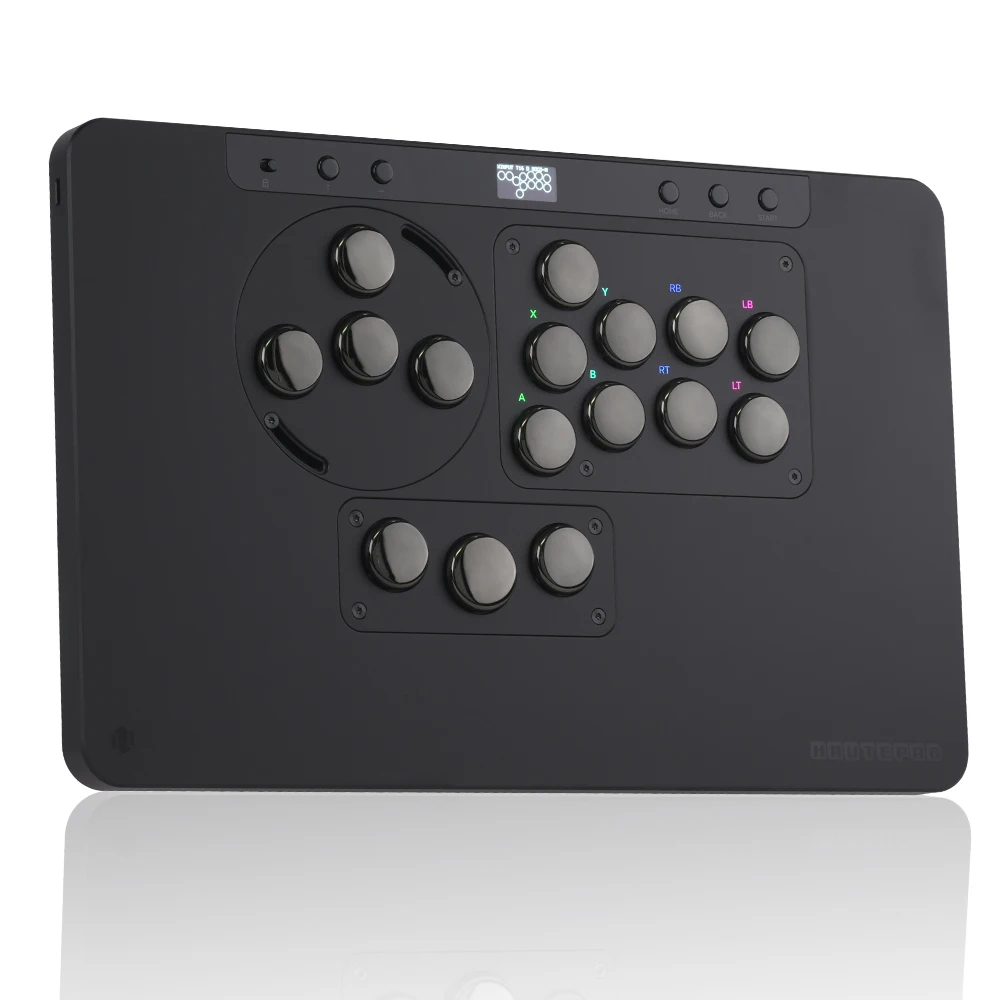

Haute42 Arcade Leverless Controller HautePad X Stickless Fightstick For PC/PS4/PS5 Hitbox Controller Ambient RGB PL/ MX Module

Description

Our Controller Supports SWITCH 2
Note: The X module needs to be purchased separately, and the controller does not include module accessories
Haute42 Arcade Leverless Controller HautePad X Stickless Fightstick For PC/PS4/PS5 /Switch /Steam Button Rim Hitbox Controller With Ambient RGB Replaceable LP/ MX Module
Product Description

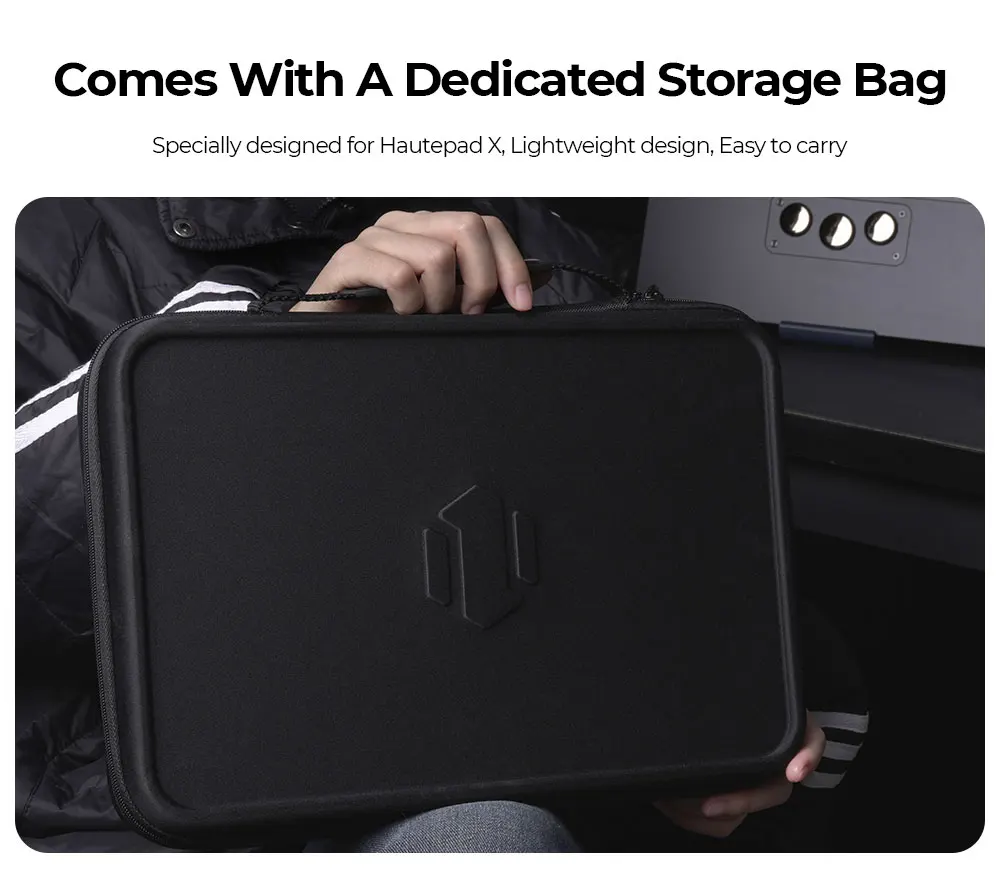

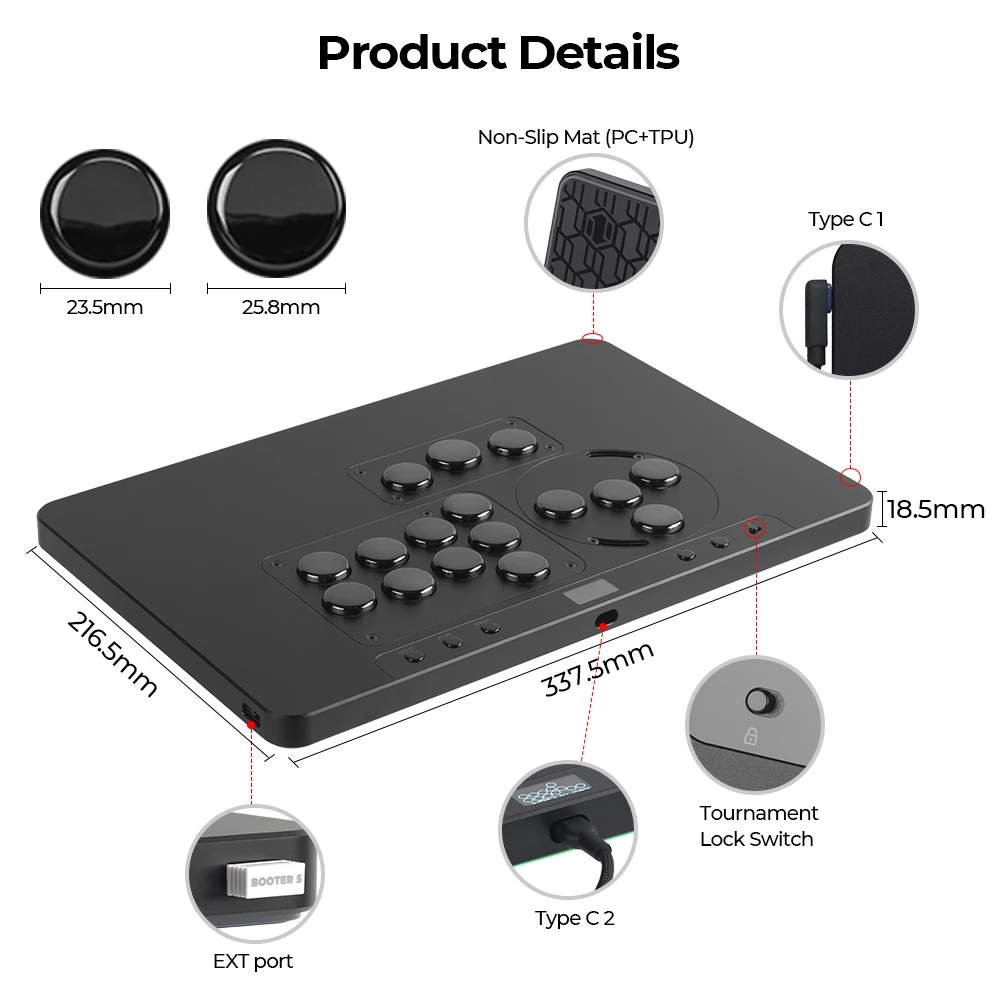

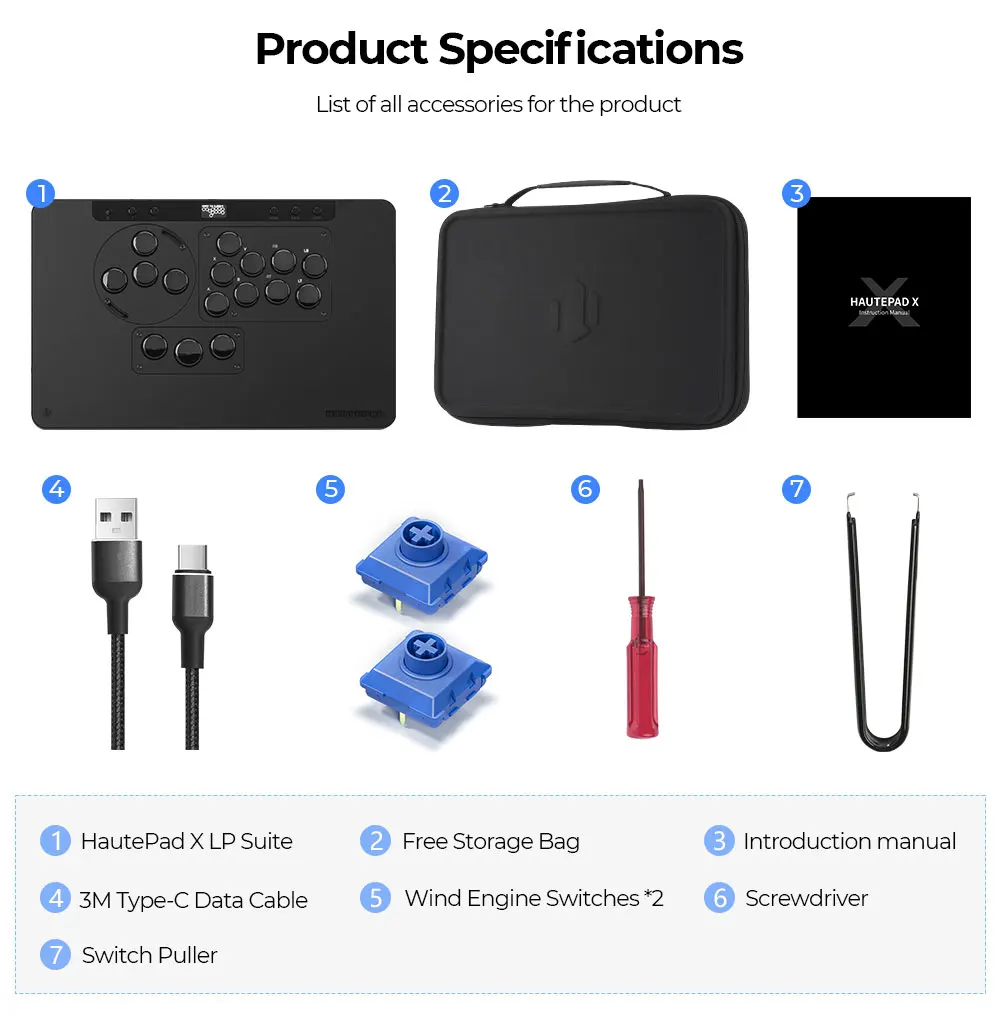

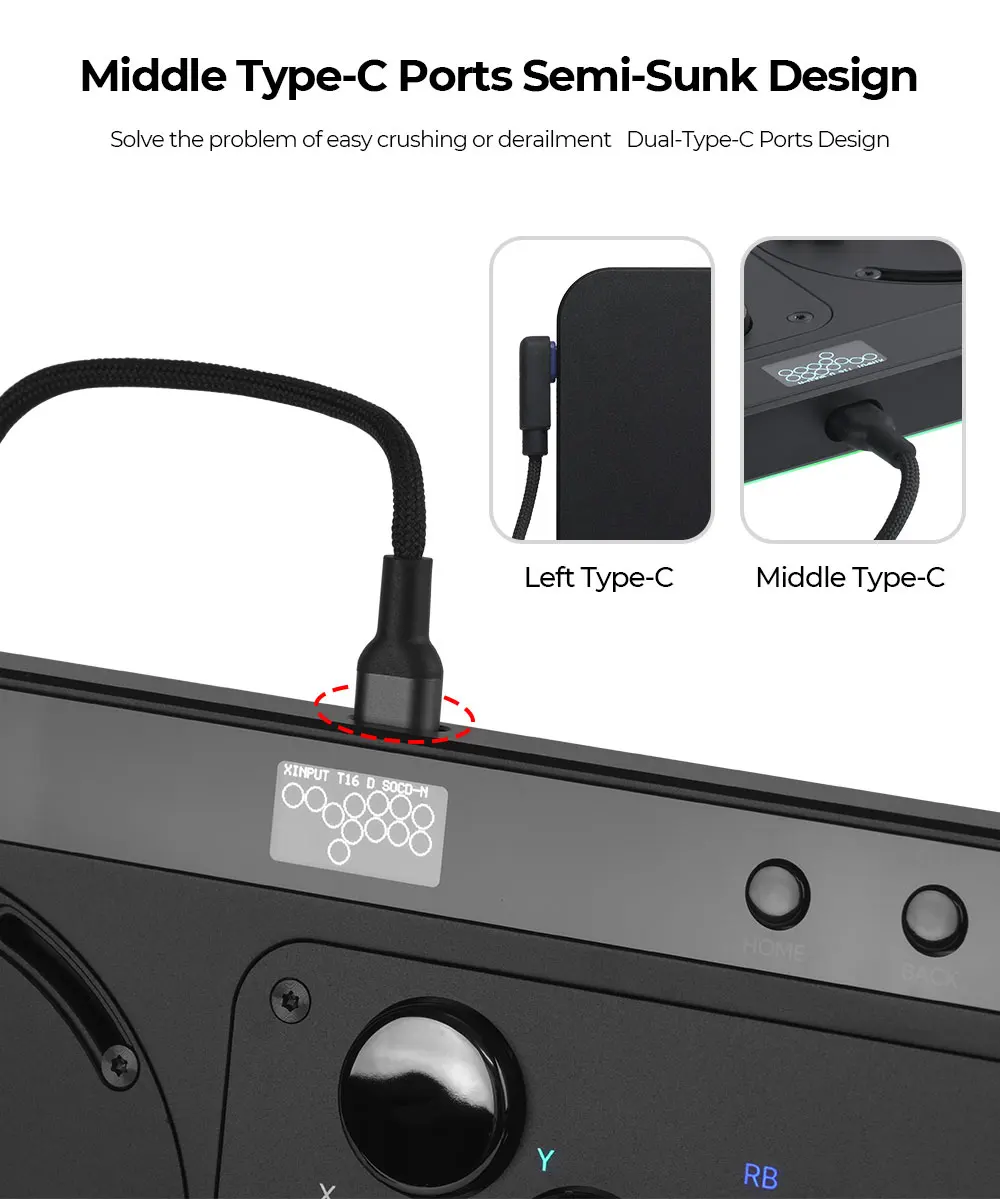

Working voltage: 5VLink method: USB Type-CProduct size: 337.5mm * 216.5mm * 18.5mmSupported Platforms : pc /ps3/ps4/Switch/ Android/SteamProduct Specifications:1 *HautePad X,1*3M Data Cable Type-C,1*Keycap Puller,1*Screwdriver,1 Storage Bag

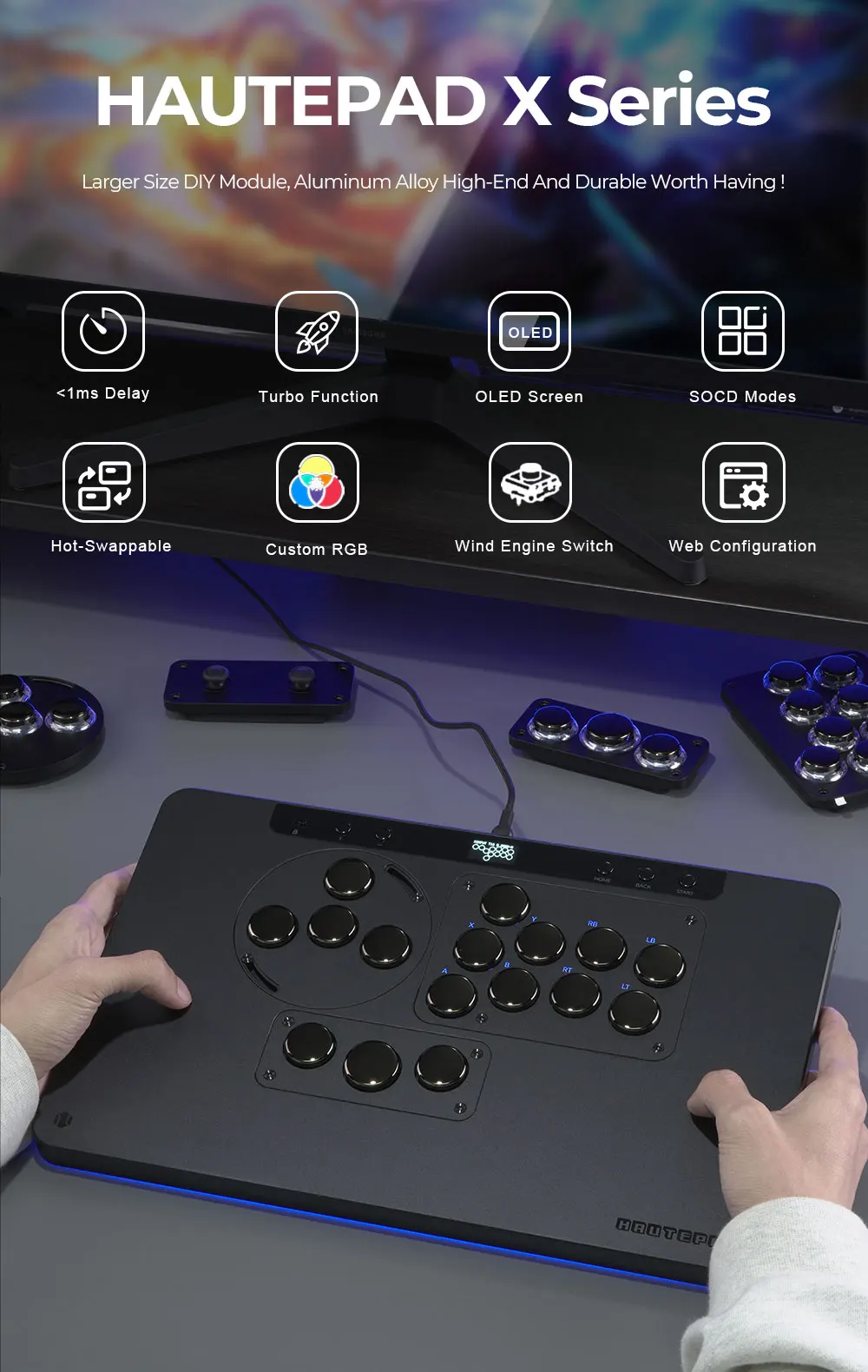

HautePad X Series

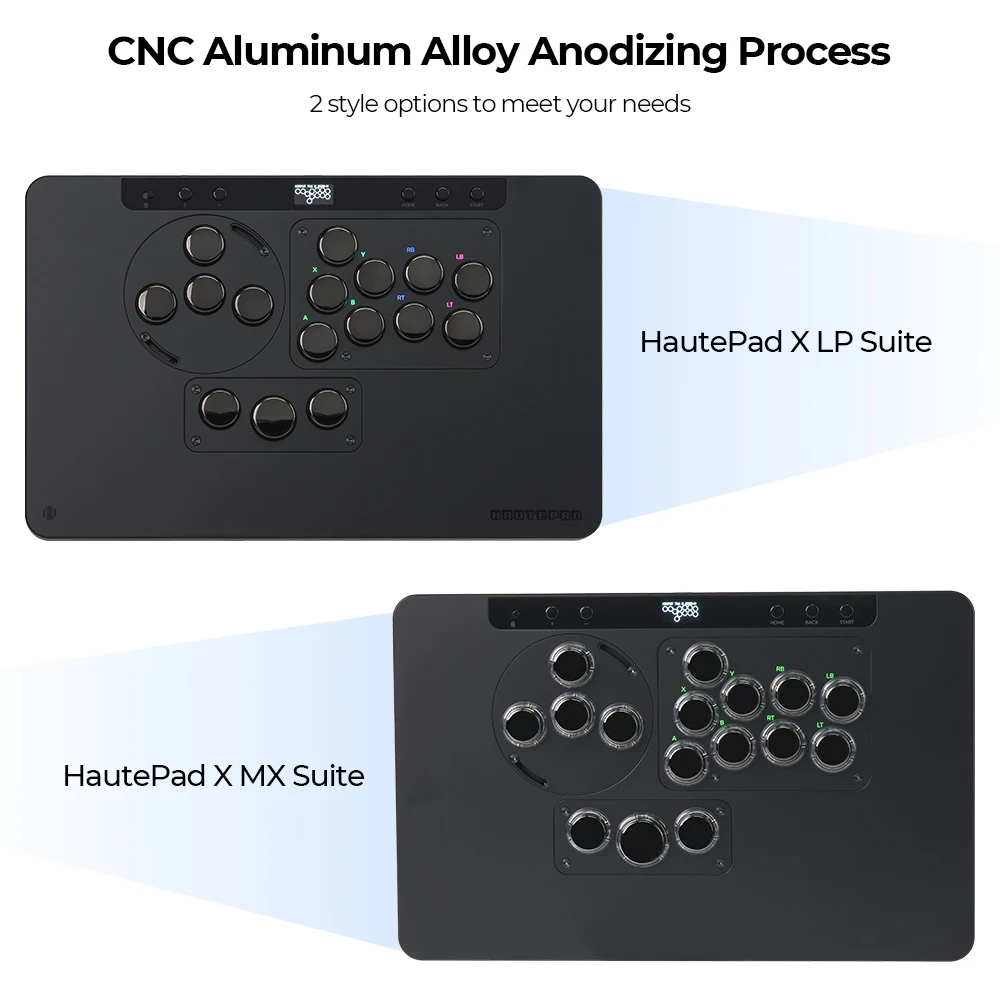

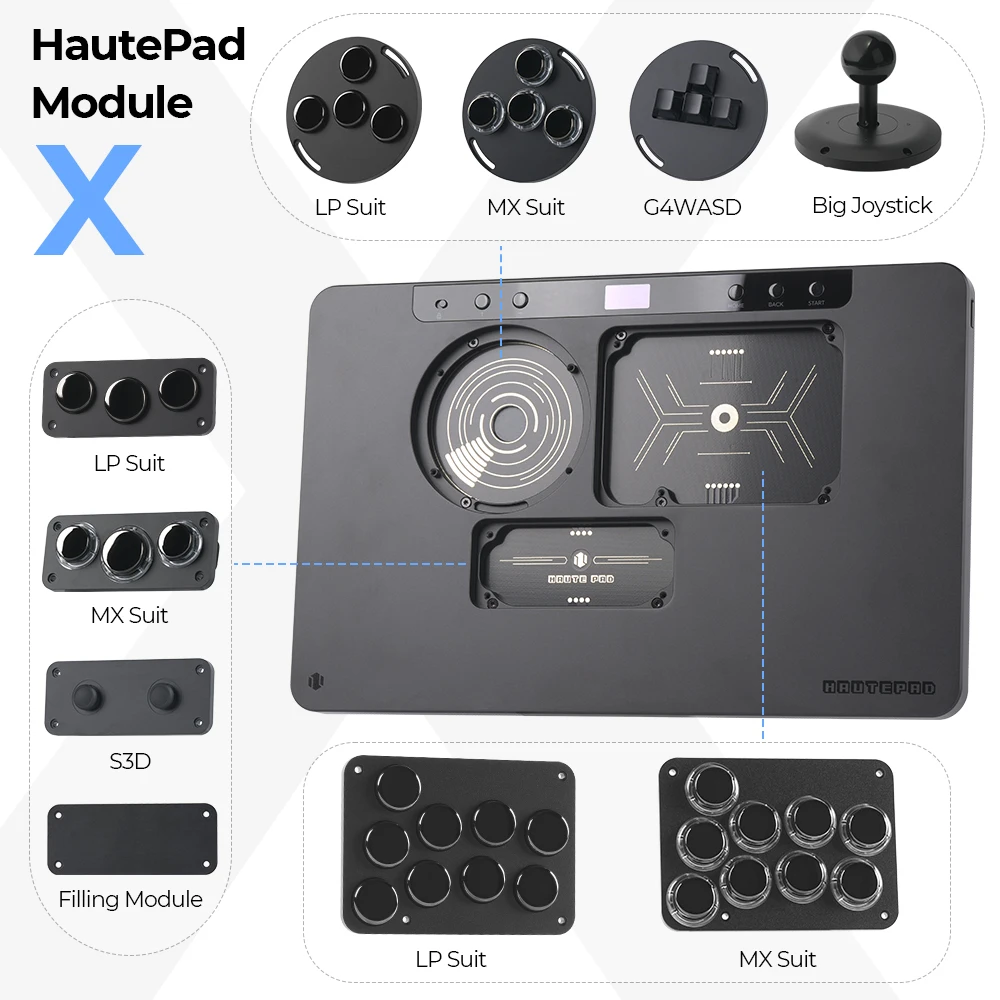

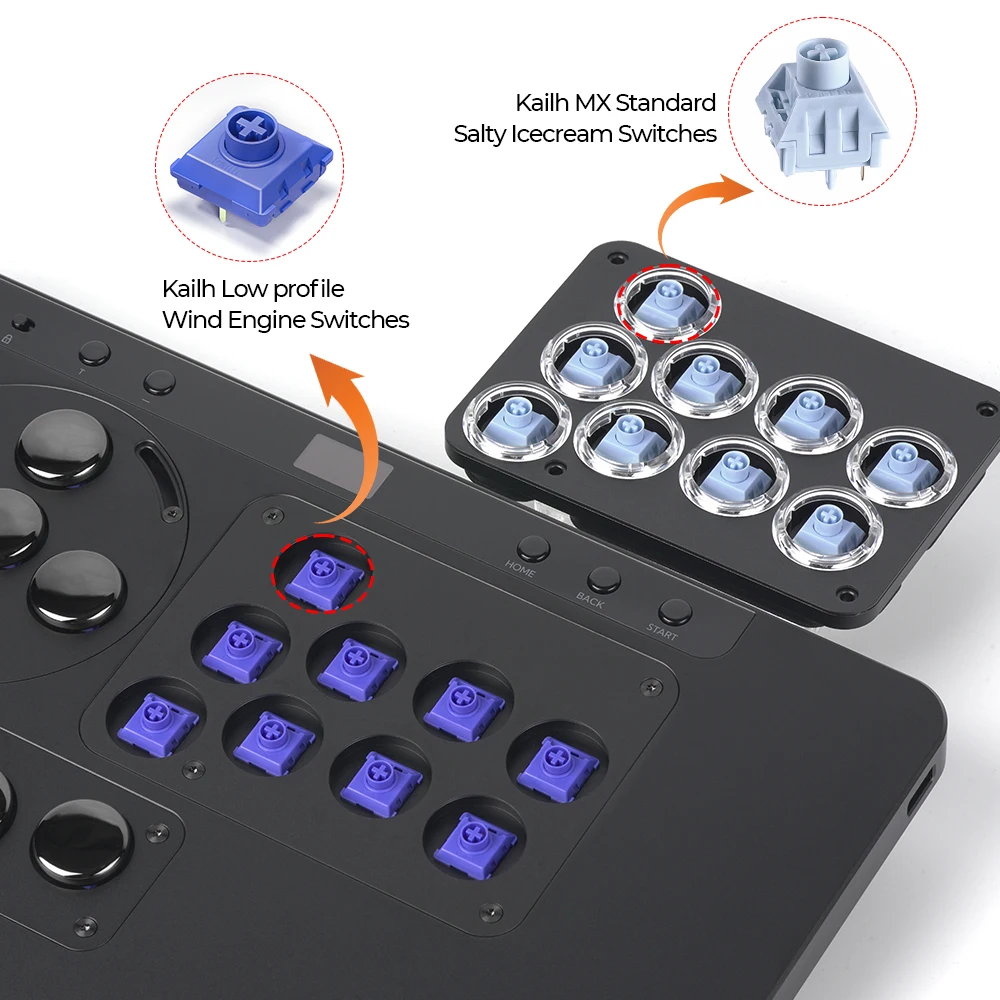

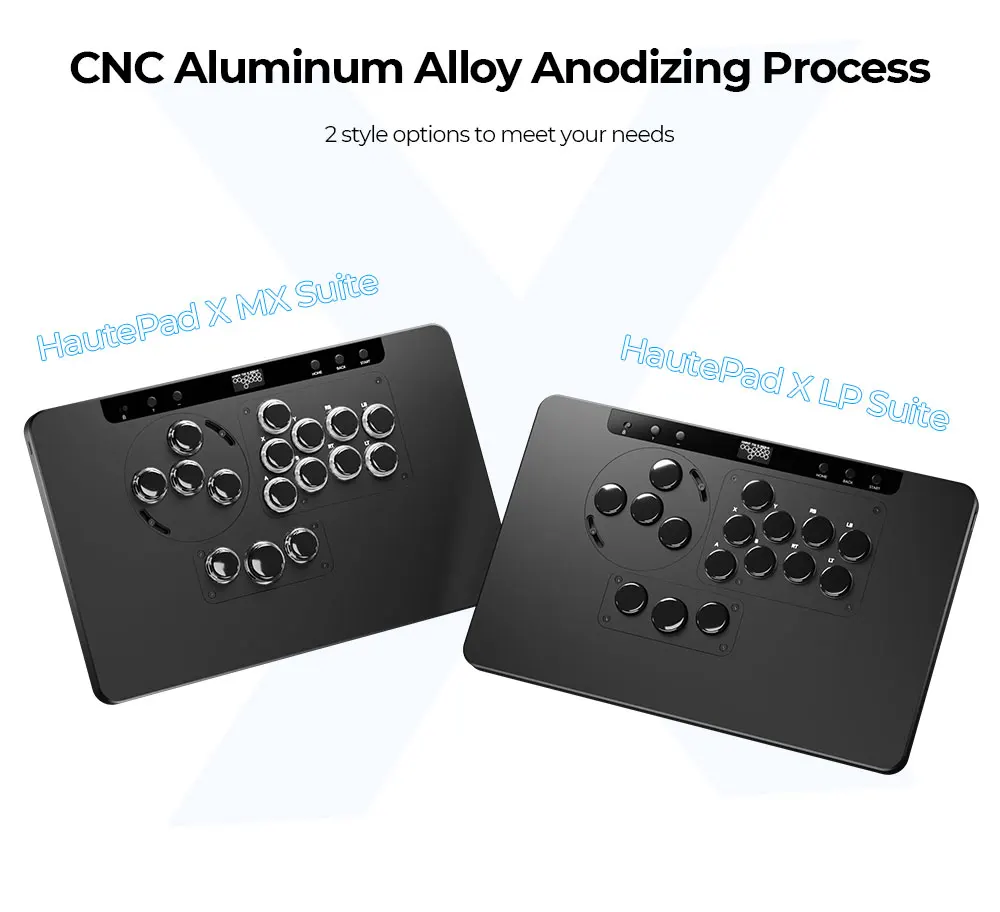

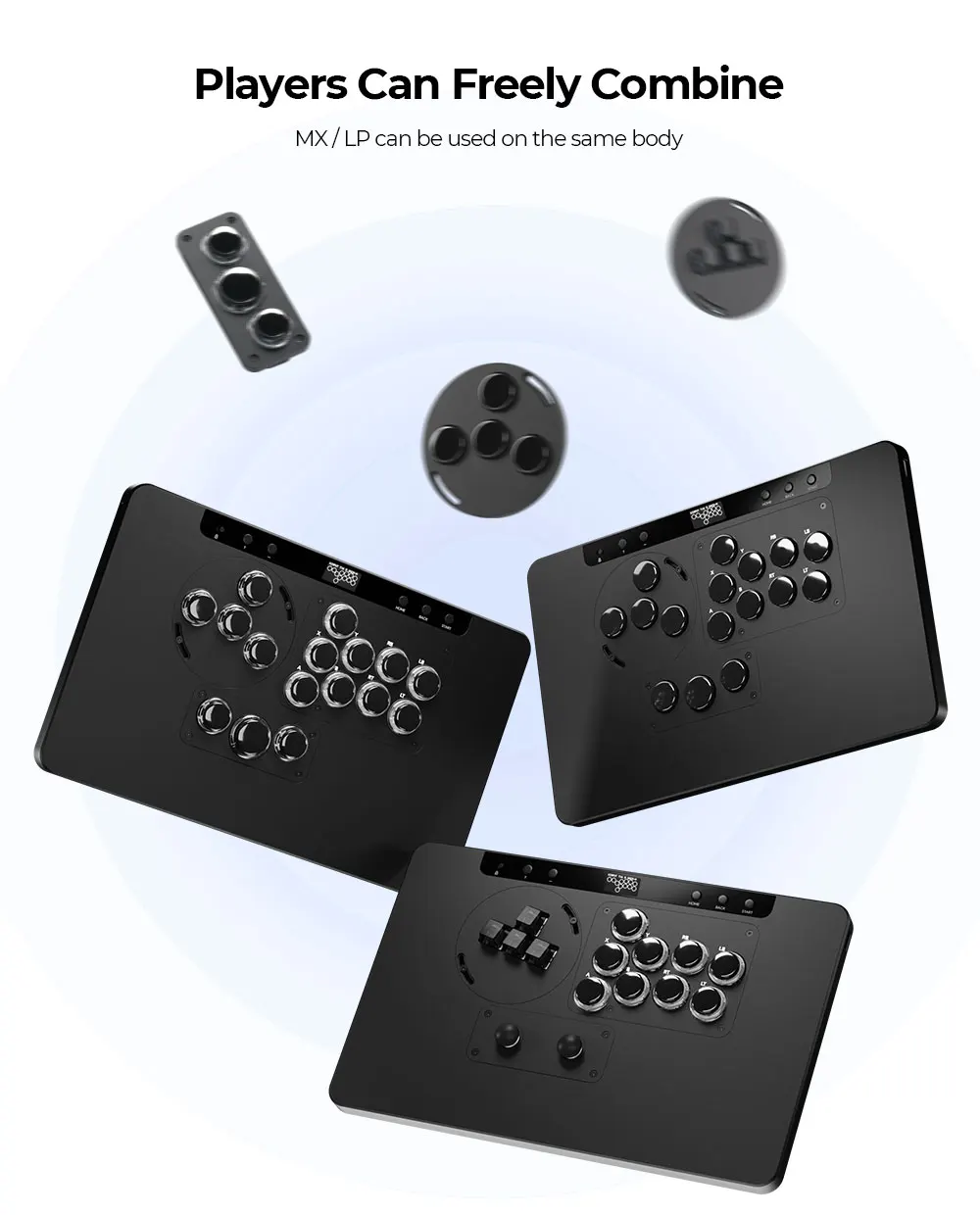

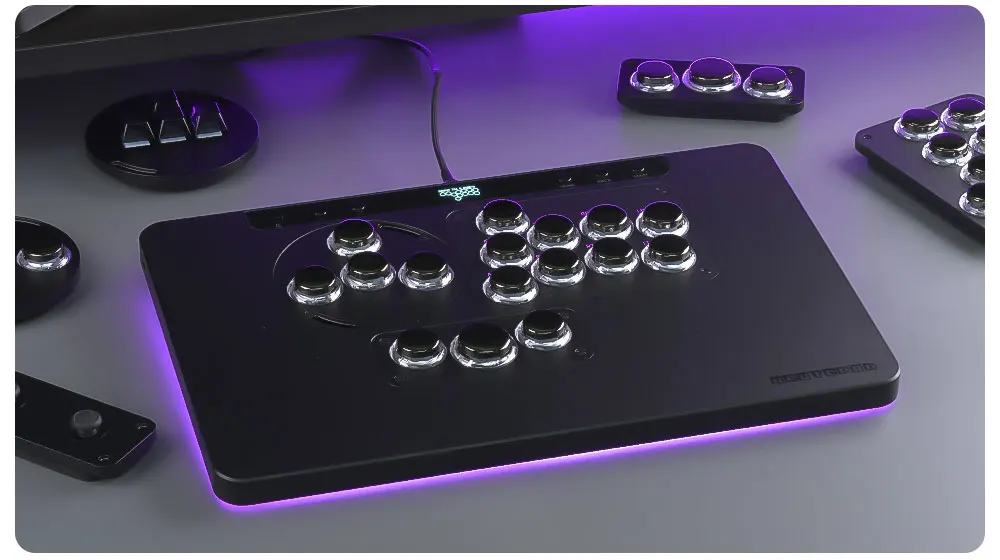

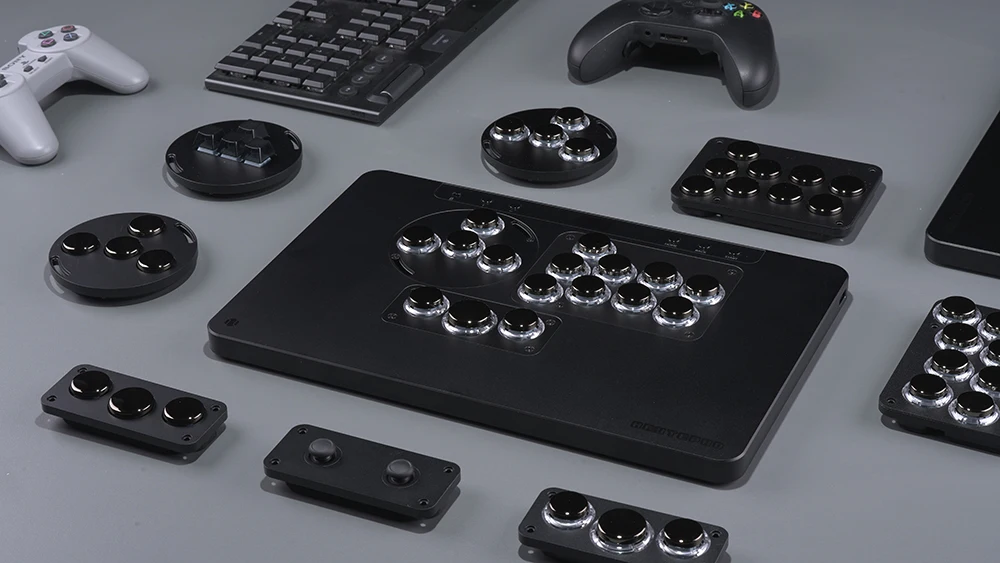

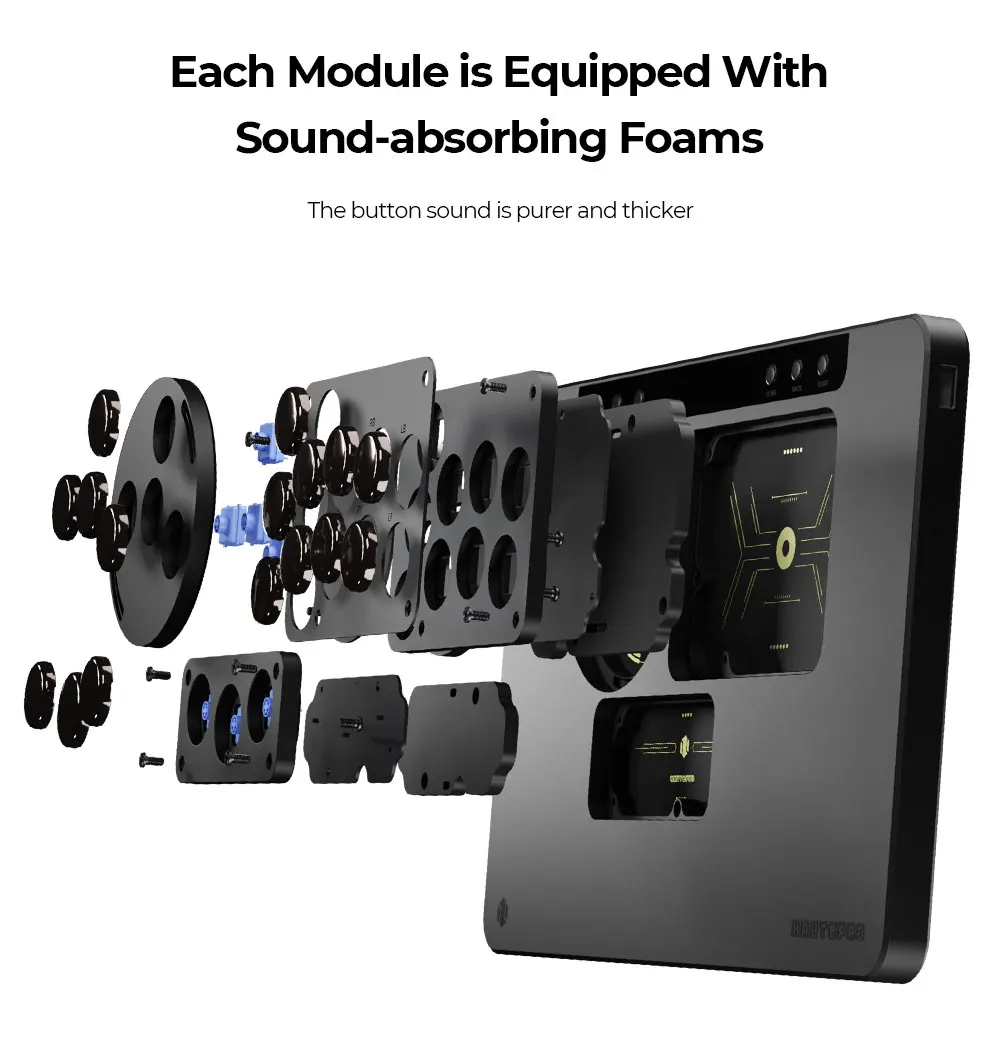

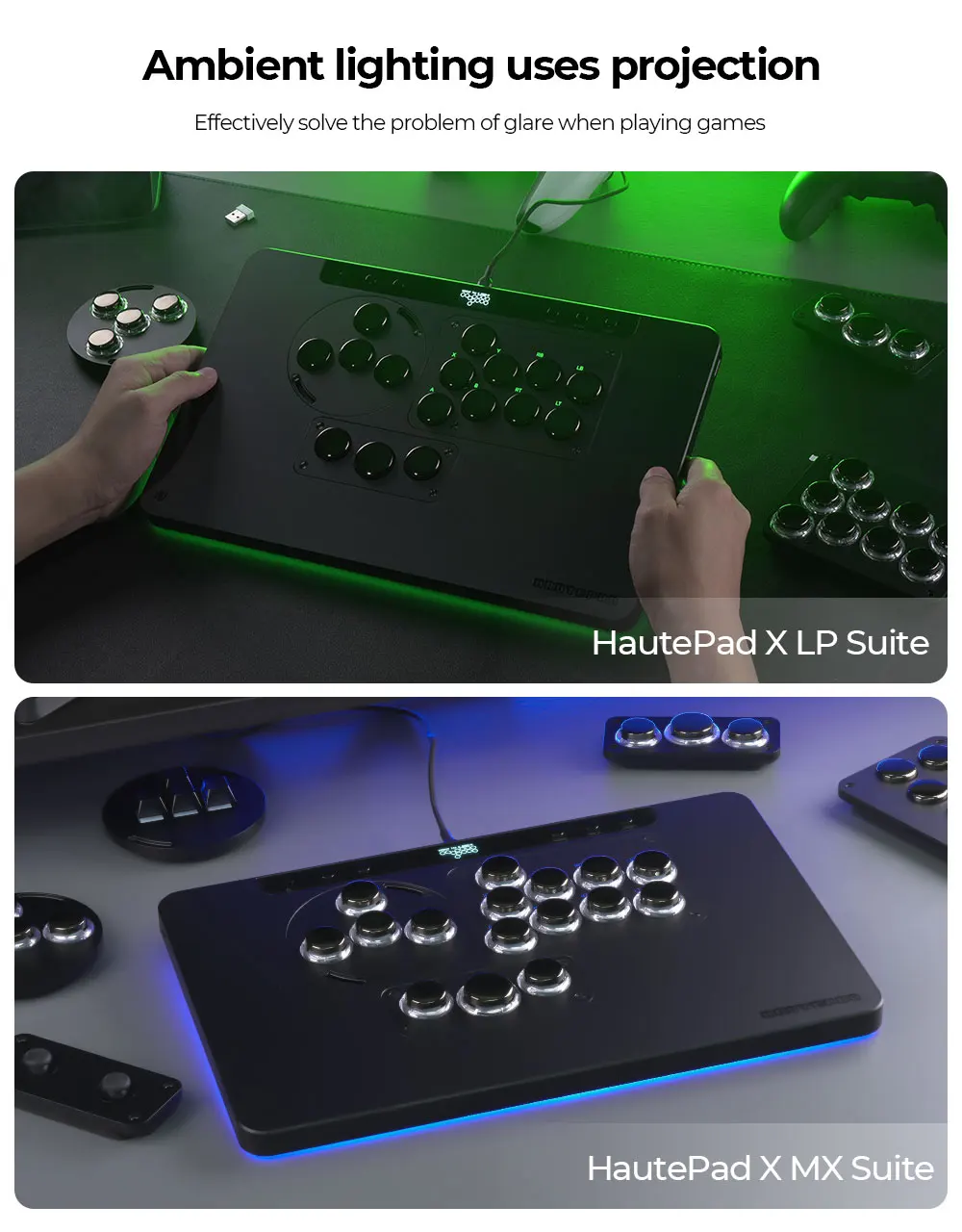

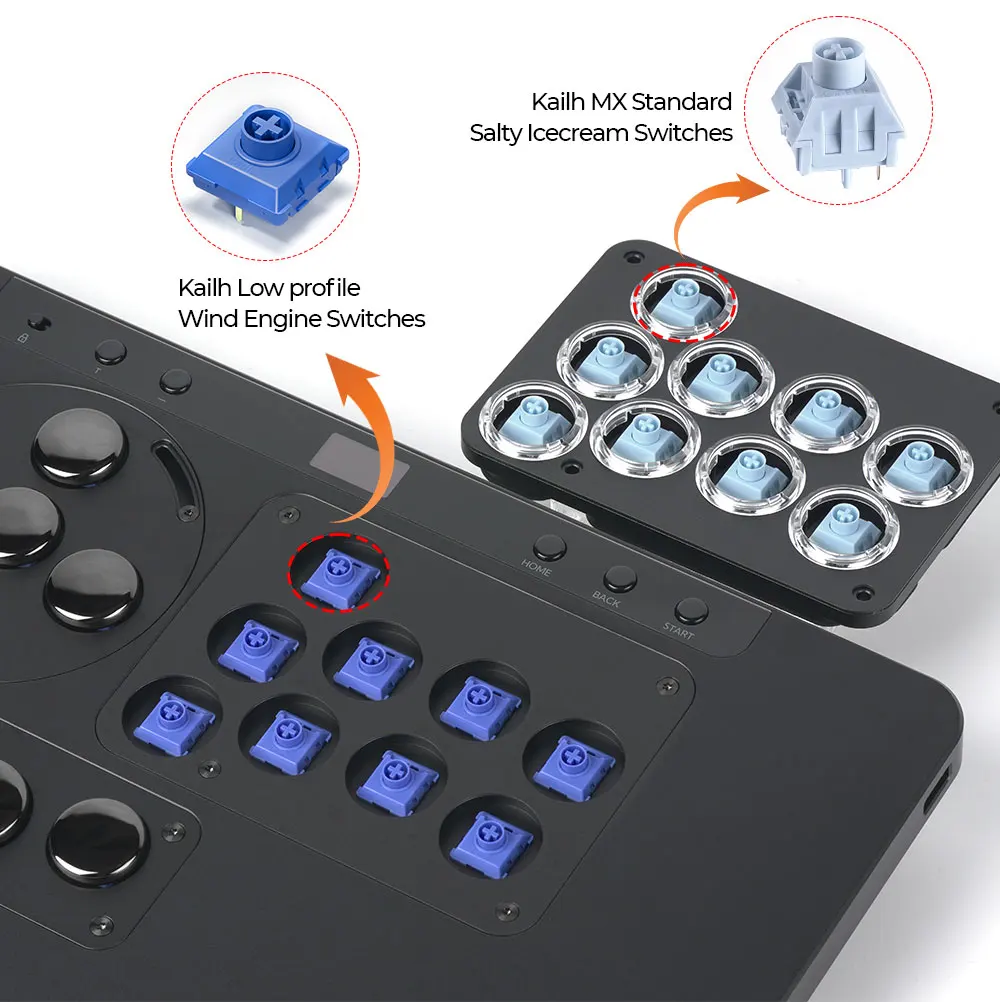

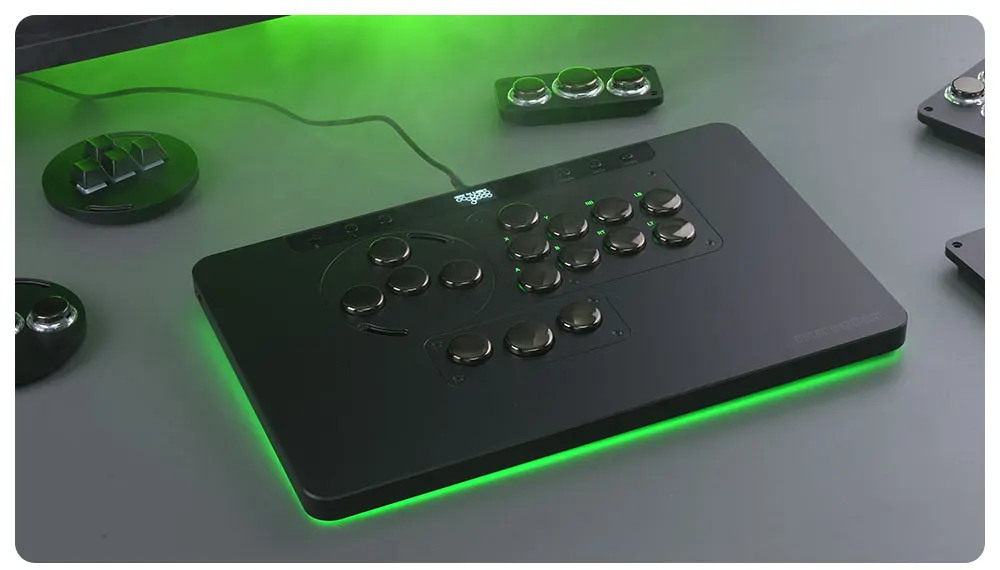

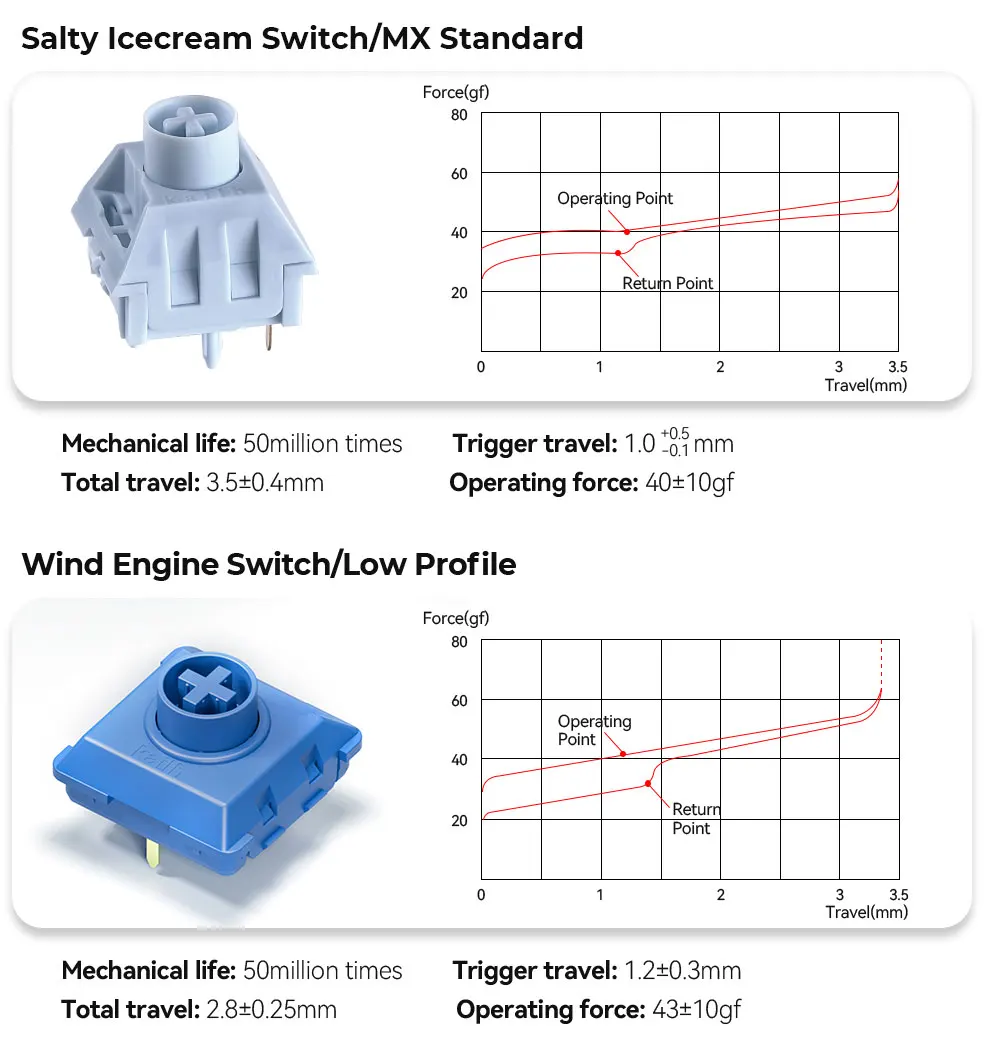

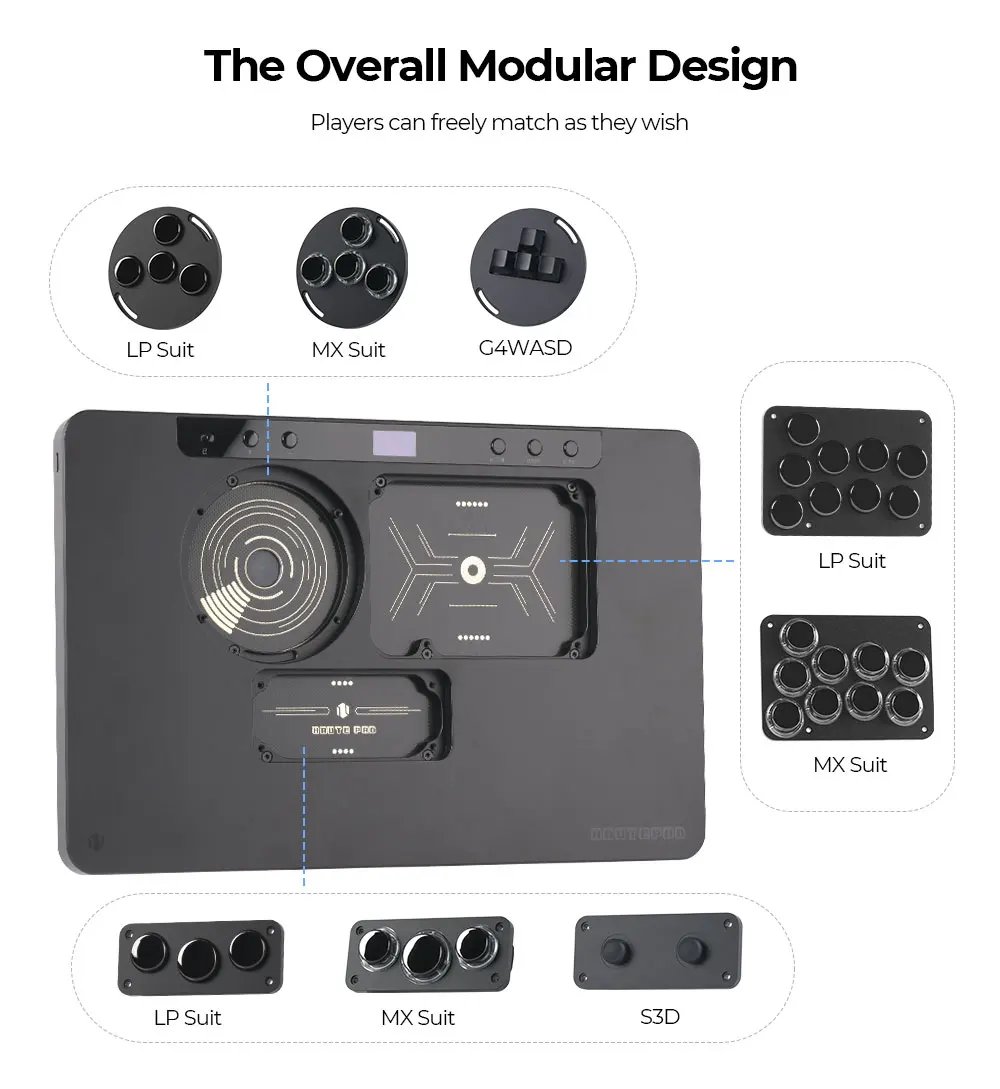

This is leverless controller that can replace LP/MX Switches, combining ambient lights and RBG lights, with a larger size than M-ULTRA, aluminum alloy material, electroplated keycaps, and players can freely replace the required modules. It is a high-quality and comprehensive arcade tickless controller
Please Note That :

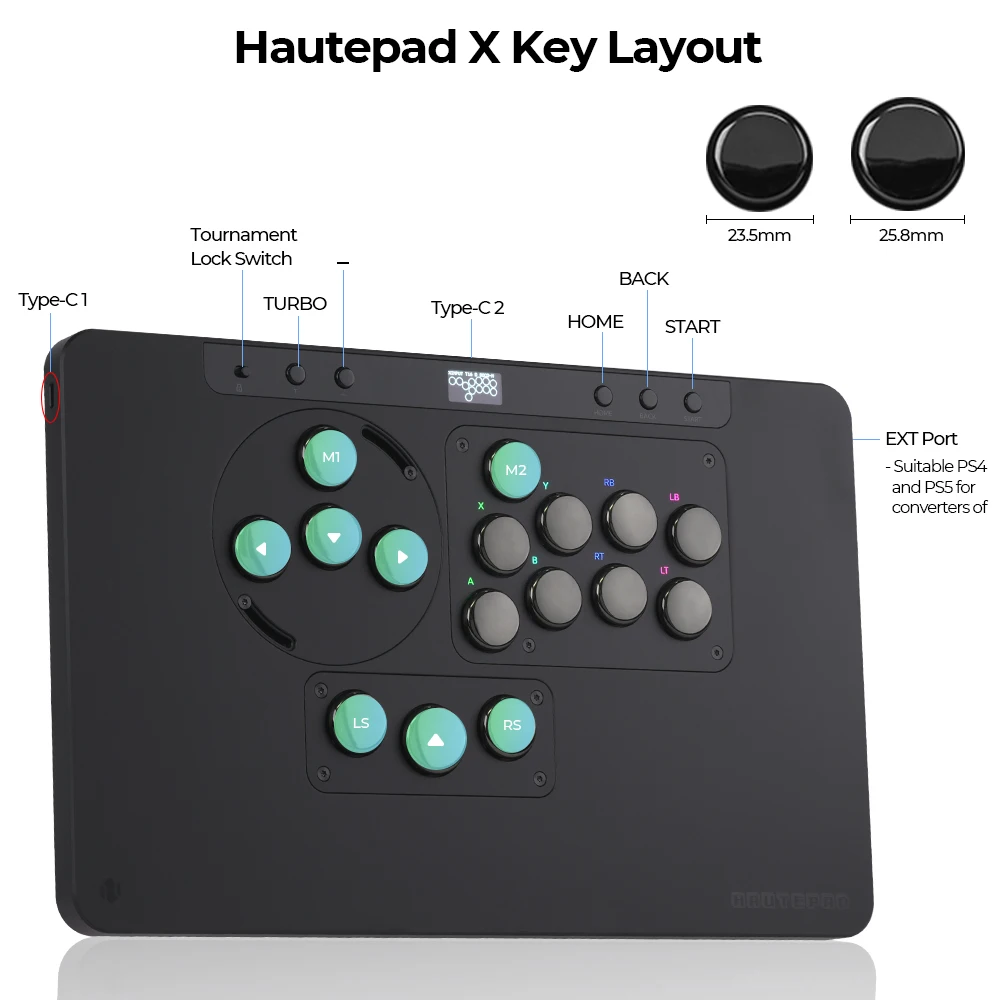

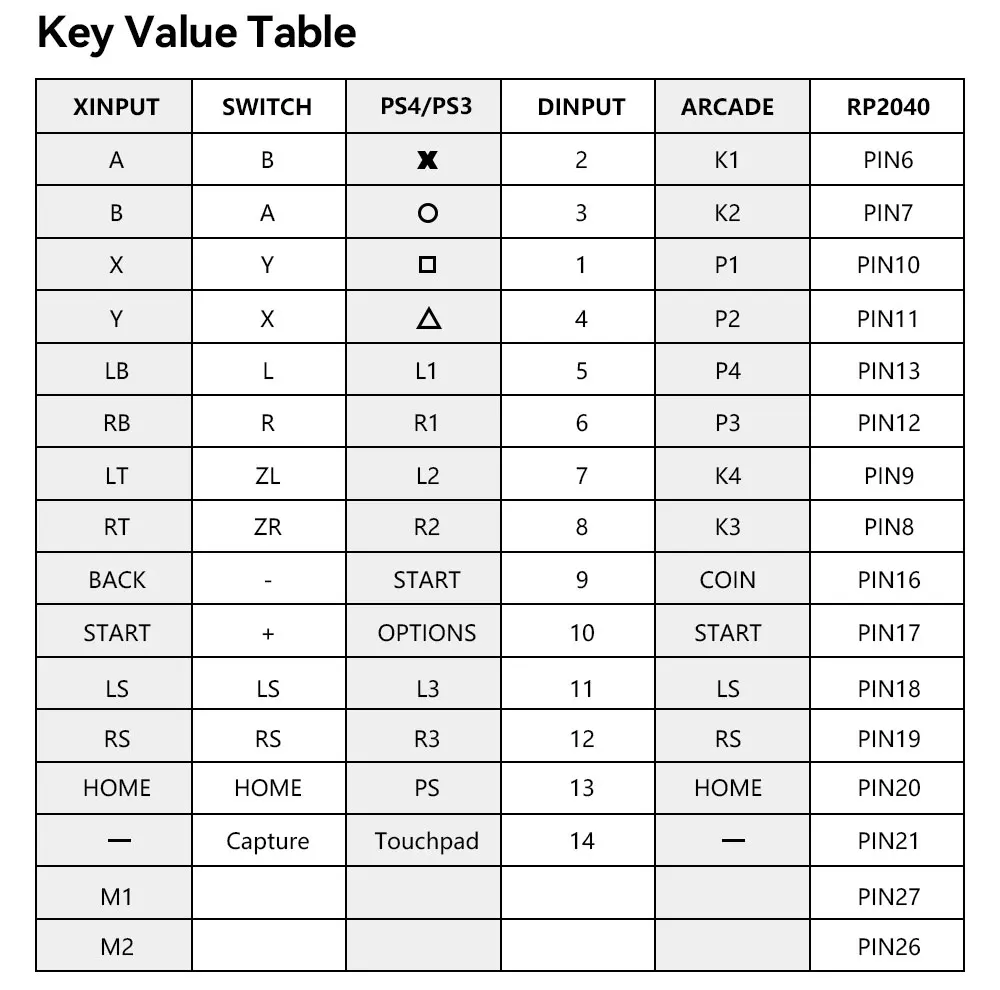

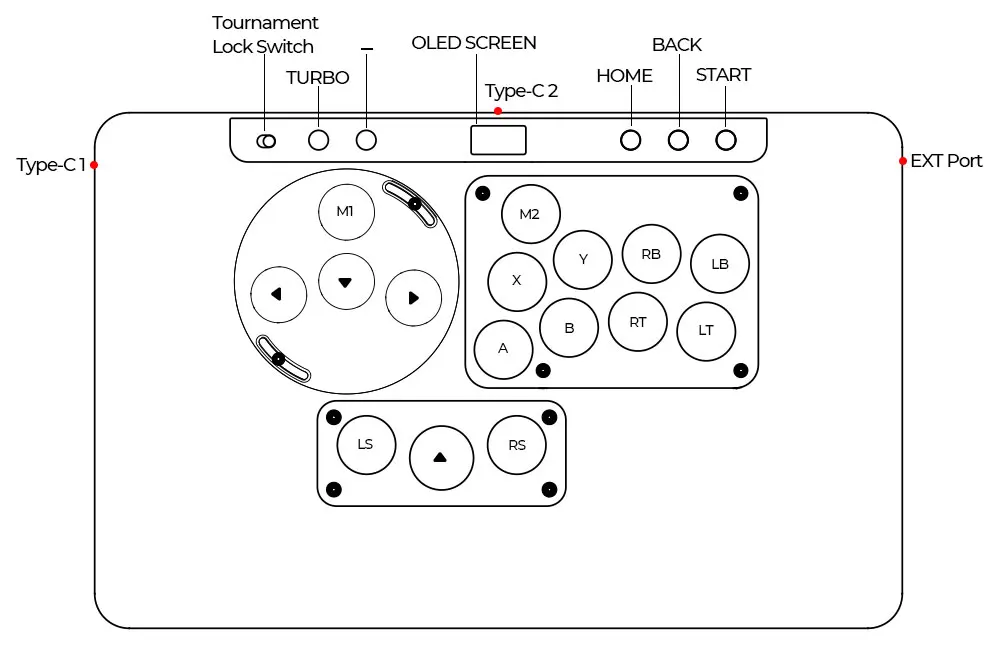

The M2 button, which is not mapped by default at the factory. It is normal and has no defects . You will need to configure it through the web settings. Please follow these steps: Go to Configuration → Add-Ons Configuration Change Turbo Pin LED to -1 Go back to Pin Mapping Set Pin 15 to your desired button ,If you have any doubts, please contact us

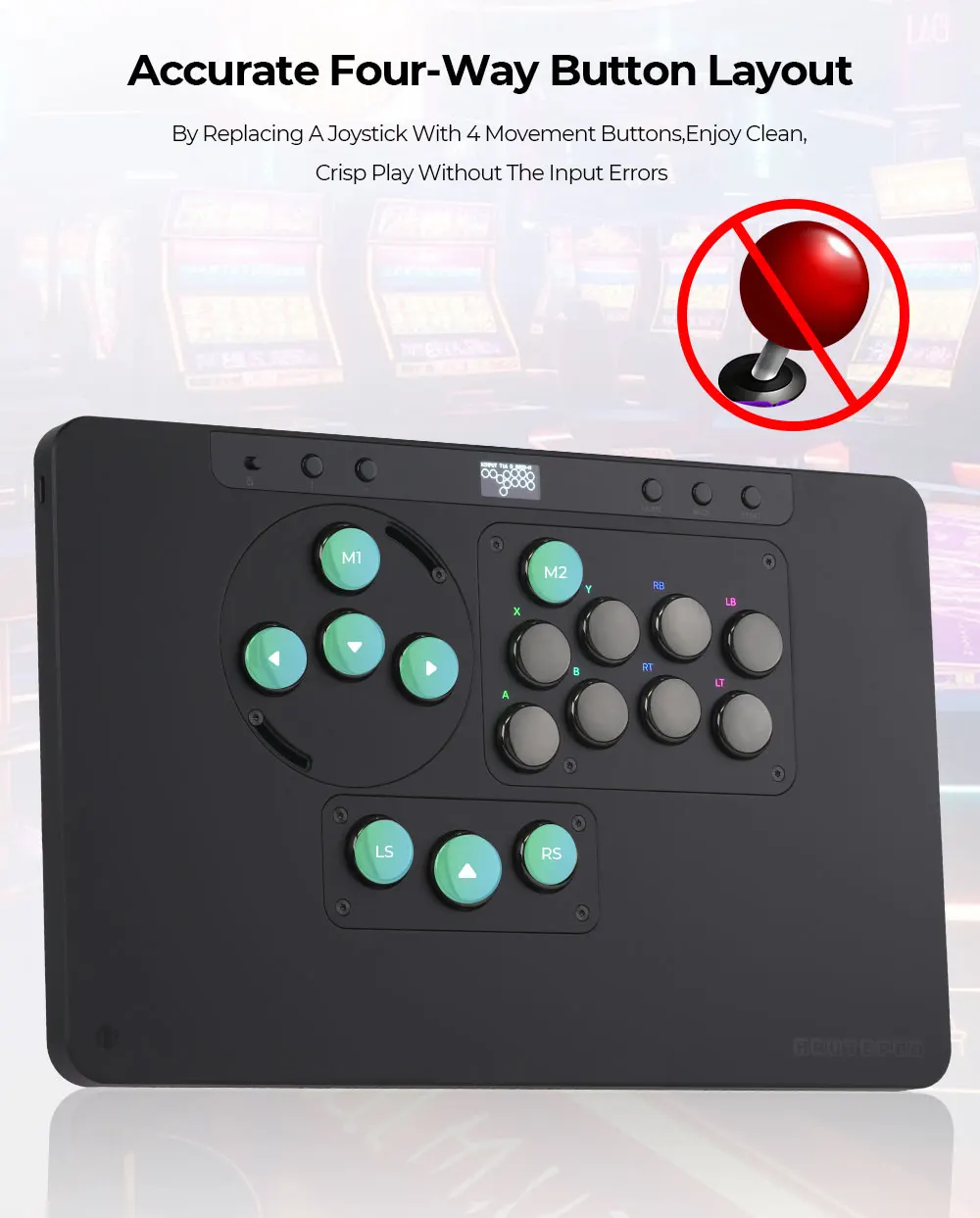

​01 Compatibility
B — Xinput mode (Windows/Steam)
A — SWITCH mode
X — PS3 / Dinput mode (Raspberry Pi / Android)
Y — PS4 mode (Compatible with PS4 games on PS5 console）
RT — KEYBOARD mode
Input Mode
To change the input mode, hold one of the buttons(as shown above) as the controller is plugged in.Tips：This product defaults to Xinput mode，Input mode is saved across power cycles.If there are games that do not compatible the above input modes , you can enter the Web Configurator to modify them for normal use.
​PS4 /PS5 Mode
About PS4 /PS5 8 minute disconnection，there are two ways， one is insert a dongle or a officially authorized PS4 wired controller to the EXT.port，We don’t have a recommend one，there are too many choices，maybe you can add our discord with other nice players in haute42 group，oficial Website：www.haute42.com
Web Configurator
This product contains a built-in web-based configuration application which can be started up by holding START when plugging your controller into a PC. Then access //192.168.7.1 in a web browser to begin configuration.
​TURBO
Hold TURBO，then press the button which you need to be set for turbo function，then this button will be continuous sending while you press it,to cancel this turbo key，just repeat the privious step.The turbo key that set will be cleard when power off.These keys can be set as a Turbo key: A / B / X / Y / LB / RB / LT / RT
04 RGB LED Setting
●BACK + START + X Next Animation
●BACK + START + A Previous Animation
●BACK + START + Y Brightness Up
●BACK + START + B Brightness Down
●BACK + START + RB LED Parameter Up
●BACK + START + RT LED Parameter Down
●BACK + START + LB Pressed Parameter Up
●BACK + START + LT Pressed Parameter Down
